Fingerprint USB Biometric Card Reader ISO197794 ISO2001 ANS378 WSQ

    Buy cheap Fingerprint USB Biometric Card Reader ISO197794 ISO2001 ANS378 WSQ from wholesalers

    Buy cheap Fingerprint USB Biometric Card Reader ISO197794 ISO2001 ANS378 WSQ from wholesalers
    • Buy cheap Fingerprint USB Biometric Card Reader ISO197794 ISO2001 ANS378 WSQ from wholesalers

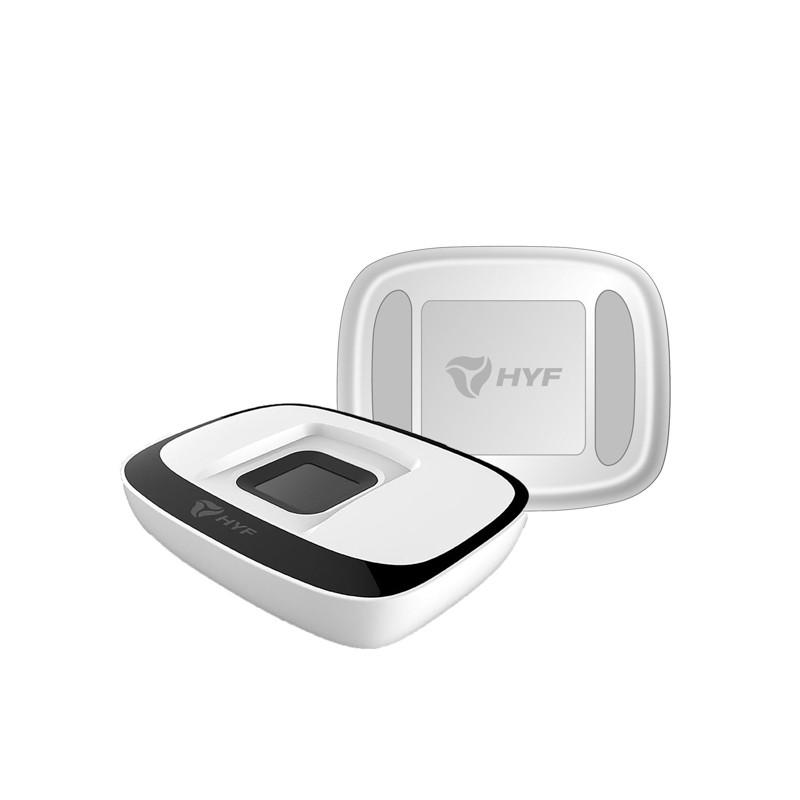

    Fingerprint USB Biometric Card Reader ISO197794 ISO2001 ANS378 WSQ

    Ask Lasest Price
    Brand Name : HYF
    Model Number : BH102
    Certification : CE
    Price : Prices can be negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 30000 units per year
    Delivery Time : 25-30days
    MOQ : 1000
    • Product Details
    • Company Profile

    Fingerprint USB Biometric Card Reader ISO197794 ISO2001 ANS378 WSQ

    Fingerprint Reader Support International Standard ISO197794 ISO2001 ANS378 WSQ


    BH102 is an enhanced version of USB2.0 Fingerprint Scanner from Herofun. It was certified Single Finger Reader.

    It Supports International Standard ISO197794 ISO2001 ANS378 WSQ.


    It is a robust but cost effective single finger capture device and ideal for border control, identity card, driver license, election and any type of civilian AFIS application.


    With appropriate software in PC, user can select this LFD feature so that only live finger's fingerprint will be scanned into PC. Fake fingers made from silicone rubber, play-doh, etc, will be rejected. And the LFD feature is included in all Futronic standard software.

    A unique serial number is factory-programmed into the USB Device Descriptor of each BH102. So every BH102 is traceable and this is very important for government identity management projects.


    Specification


    Display

    100*80*25mm (product)

    Performance Parameter

    Capture ModeOptical Touch
    Sensor size21mm x 19mm
    Imaging area256*360 pixel
    Array500 DPI
    CPU150MHz,1M Bits Flash Memory,128KB SRAM
    Fingerprint scannerCB100
    Big fingerprint capacity500-1000 fingerprints(3000pcs standard)
    FAR< 0.001 %(Security Level:3 )
    FRR< 0.1 %(Security Level:3)
    Match mode1:N identification and 1:1 verification
    Time of ResponseFingerprint pretreatment < 0.45 s

    Communication Mode

    InterfaceUSB2.0
    USB connectionConnect with Other Device Directly

    Operation Environment

    Power SupplyVoltage: DC5V±10%
    CurrentCurrent: <150ma
    Working temperature-20 ℃+ 70 ℃
    Working Humidity20%– 80%

    Product details


    Fingerprint USB Biometric Card Reader ISO197794 ISO2001 ANS378 WSQFingerprint USB Biometric Card Reader ISO197794 ISO2001 ANS378 WSQ
