150MHz USB Biometric Fingerprint Scanner For PC FAP20 Digital Secondary

    Buy cheap 150MHz USB Biometric Fingerprint Scanner For PC FAP20 Digital Secondary from wholesalers

    Buy cheap 150MHz USB Biometric Fingerprint Scanner For PC FAP20 Digital Secondary from wholesalers
    • Buy cheap 150MHz USB Biometric Fingerprint Scanner For PC FAP20 Digital Secondary from wholesalers

    150MHz USB Biometric Fingerprint Scanner For PC FAP20 Digital Secondary

    Ask Lasest Price
    Brand Name : HYF
    Model Number : BH102
    Certification : CE
    Price : Prices can be negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 30000 units per year
    Delivery Time : 25-30days
    MOQ : 1000
    • Product Details
    • Company Profile

    150MHz USB Biometric Fingerprint Scanner For PC FAP20 Digital Secondary

    Original Digital WINDOWS Secondary USB Biometric Fingerprint Scanner Terminal


    Easy-to-use

    To use, simply place a finger on the reader window and the reader quickly and automatically captures and (optionally) encrypts the fingerprint image before sending it to the computer.

    Herofun products utilize optical fingerprint scanning technology for superior image quality and product reliability.

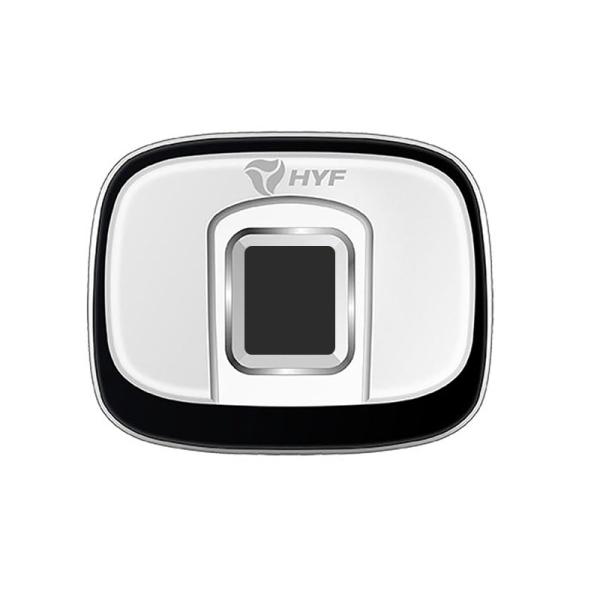

    The BH102 fingerprint Reader optically scans the fingerprint when the user touches the glass imaging window. Optical technology offers the highest combination of durability and ease of use.

    BH102 is an enhanced version of USB2.0 Fingerprint Scanner from Herofun. It was certified Single Finger Reader.

    It Supports International Standard ISO197794 ISO2001 ANS378 WSQ.


    It is a robust but cost effective single finger capture device and ideal for border control, identity card, driver license, election and any type of civilian AFIS application.



    Specification


    Display

    100*80*25mm (product)

    Performance Parameter

    Capture ModeOptical Touch
    Sensor size21mm x 19mm
    Imaging area256*360 pixel
    Array500 DPI
    CPU150MHz,1M Bits Flash Memory,128KB SRAM
    Fingerprint scannerCB100
    Big fingerprint capacity500-1000 fingerprints(3000pcs standard)
    FAR< 0.001 %(Security Level:3 )
    FRR< 0.1 %(Security Level:3)
    Match mode1:N identification and 1:1 verification
    Time of ResponseFingerprint pretreatment < 0.45 s

    Communication Mode

    InterfaceUSB2.0
    USB connectionConnect with Other Device Directly

    Operation Environment

    Power SupplyVoltage: DC5V±10%
    CurrentCurrent: <150ma
    Working temperature-20 ℃+ 70 ℃
    Working Humidity20%– 80%

    Product details


    150MHz USB Biometric Fingerprint Scanner For PC FAP20 Digital Secondary150MHz USB Biometric Fingerprint Scanner For PC FAP20 Digital Secondary
