Slim Size FAP20 Capacitive Fingerprint Module Support Dry And Wet Fingers

Product Features

● Capacitive Sensor Module

● 508DPI Image Resolution

● 256 levels image Gray Scale

● Platen Size is 22.5*34.5mm

● Sensing Area is 12.8*18.0mm

● Image Size is 256*360 pixels

● Support UART/USB Interface

● FBI PIV FAP20 certified,STQC certified

● Support Live Fingerprint Detection(LFD)

● Support Different OS including Windows,Android,Linux and other embedded system

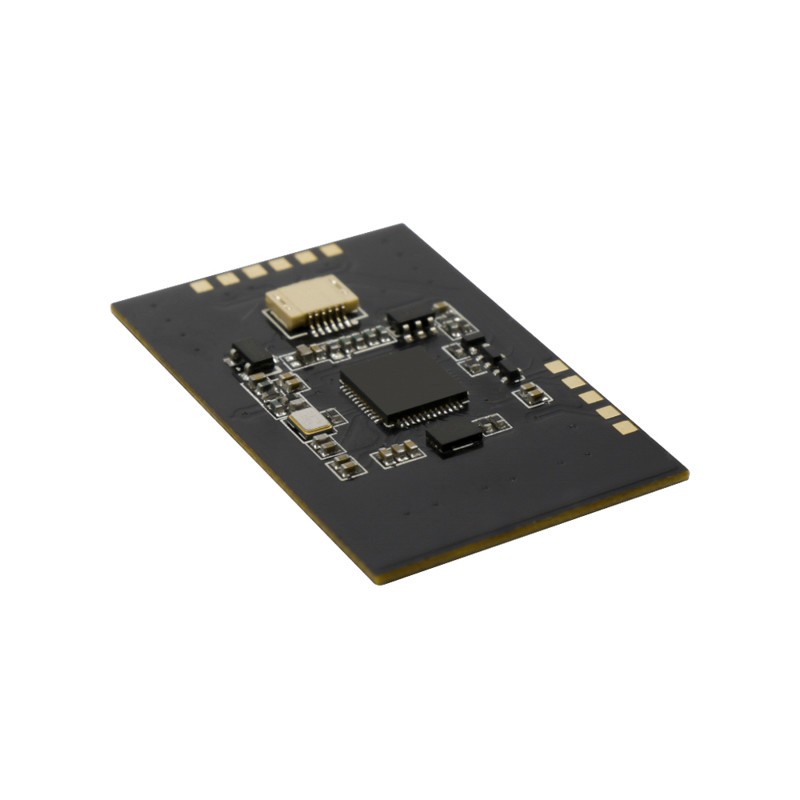

The FCM360 all-in-one capacitive sensor module is consists of the capacitive fingerprint sensor & Algorithm MCU. With our 3F powerful fingerprint sensor and high performance algorithm chip,FCM360 deliver superior images quality with 256*360 effective pixel. Its special durable coating protects against ESD up to 15KV. A high performance algorithm chip based on ARM Cortex is well integrated into modules,provides 512K flash and 192 SRAM.

Specification

Product details
