FAP10 Capacitive Fignerprint Sensor Support 360 Degree Rotation
Authrntication

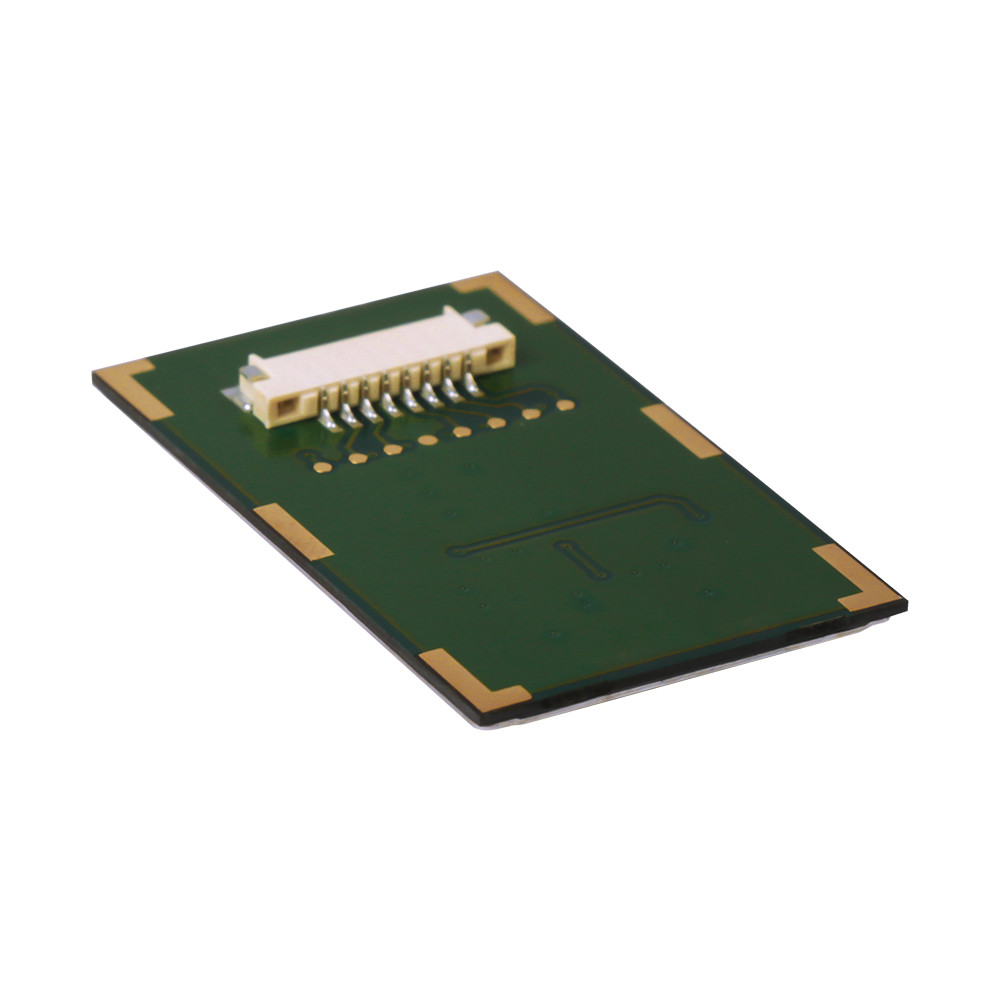

FCS288 fingerprint sensor
FCS288 Capacitive fingerprint sensor is an OEM fingerprint sensor
for secondary development. It can identify live fingers and refuse
fake fingers, which belongs to higher security level comparing with
optical ones.
It have features like features small size, low power consumption,
simple ports, high reliability, small fingerprint template, large
fingerprint capacity, etc. It is convenient to be embedded to user
system for realizing clients required fingerprint verification
products.
FCS288 Capacitive fingerprint sensor offers powerful identification
performance .
Where You Can Use This Product?
FCS288 Capacitive fingerprint senso can be widely used for products
below
1. Fingerprint door lock system
2. Biometric access control system
3. Biometric time attendance system
4. Fingerprint car starter
5. Fingerprint safe box lock
6. Automatic Vendor Machine
Specification
| Physical Parameter | | Capture Mode | Capacitive sensor | | Platen Size | 15.3*11.40 mm | | Sensing Area | 14.4*10.4mm | | Fingerprint Image Size | 208*288 pixels | | Image Resolution | 508 dpi | | Gray level | 256 level |
| Communication Mode | | Communication Interface | SPI |
| Operation environment | | Work Voltage | 3.3V | | Work Current | 50mA | | Temperature | -20℃-85℃ | | Humidity | 40%-80% R.H | | ESD | Contact: ± 8KV Air: ± 15KV |
| Supported OS | | Windows XP / 7 / 8 / 10, Android, Linux, Embedded |
| |
Product details
