208*288 Capacitive FAP10 Bluetooth Fingerprint Biometric Card Reader

This product can be used with smart phones as an economical mobile system instead of professional hand-held which is very suitable for the price-sensitive markets

Testing demo and sdk ca be provided for testing and further software development.

Overview

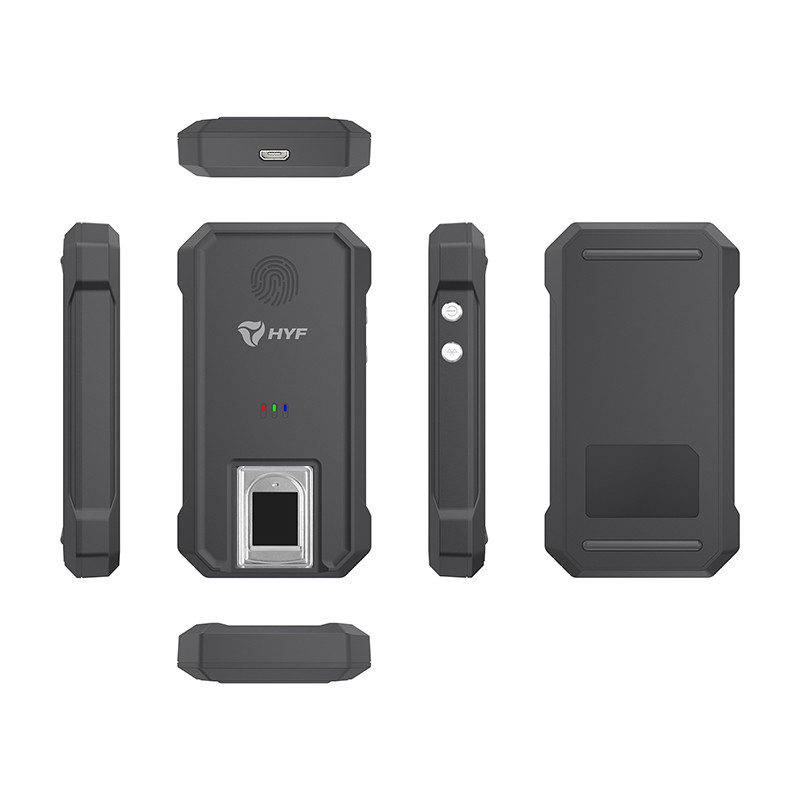

A02 is a compact and portable wireless Bluetooth fingerprint scanner with built-in rechargeable lithium battery.A02 not only can use Bluetooth but also can use the micro USB interface to communicate with Android and Windows terminals for fingerprint authentication. The Fingerprint scanner supports live fingerprint detection (LFD) to eliminates fake fingerprints and solves the difficult problems of finger registration and identification. It can be applied to various attendance and consumption systems, and mobile authentication. It can be widely used in different on the go application scenarios including upermarket retail, warehouse management, medical care, oil and railway inspections, police duty and other applications.

Specification

Model Number A02 Size L103 *W 5 5 *H 1 5 mm Weight 65g Shell Plastic Interface USB Support OTG (Micro USB) Bluet ooth Electrical parameters Power Voltage 5.0V±5 supplied by USB Working current <200 mA Environmental parameters Working temperature -10°C -60°C Storage temperature -2 0°C -7 0°C Working humidity 10 -90 Storage humidity 20 (±3) 90 (±3) Fingerprint parameters Capture window size 18mm* 12mm Image size 256x280 pixels Image Resolution 508 DPI Grayscale 8 bit,256 Software parameters Fingerprint image quality FBI CJIS-RS-0010 IAFIS Image Quality Specification Appendix F Feature format ANSI378,ISO19794 Image format WSQ,PNG,BMP,JPEG,etc OS Linux, Windows, Android,iOS,MacOS Development language C/C++,Java,C Delphi,etc

Product details

Herofun is a Professional Hardware Integrator founded in 2012, we focus in biometrics, security, IOT and other customized Products.

We have a long products line covering fingerprint tablet PC, biometric handheld and desktop terminals, Biometric Voter Kit (BVK) , face regognizition terminals etc, which already working at site globally in Home Security, Banking, Public Security, Telcom and other sectors, and tested by the market.

Herofun also have our own R&D team which allow us to bring you A-to-Z service in house---from design to finished product.

We do love what we are doing, as all these working-at-site products bring dignity to people without ID, give profit to our client, and help government easy management.

Herofun want to be a remarkable name in the biometrics eco-system.
