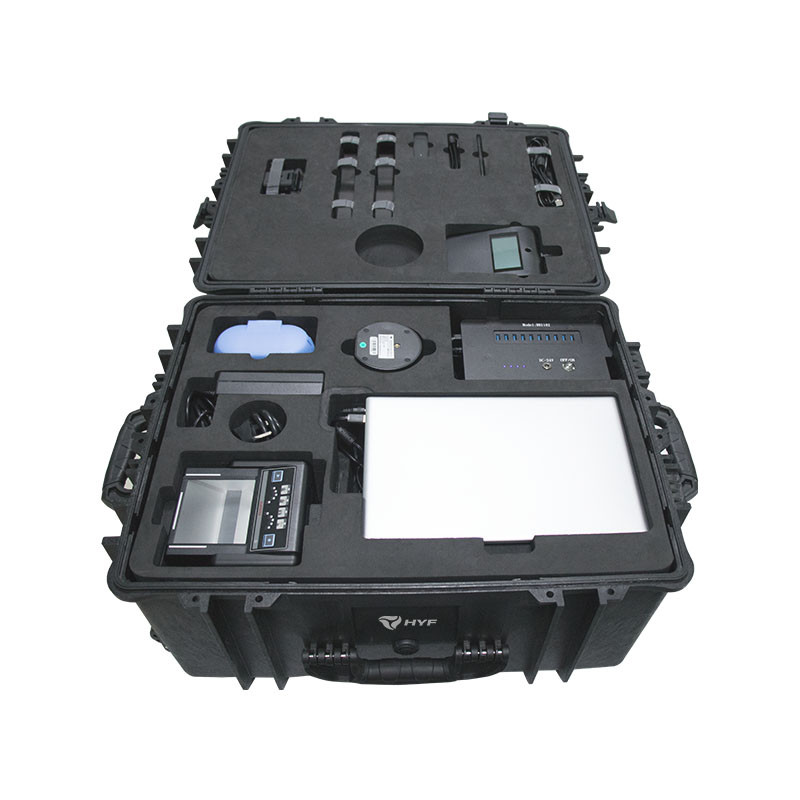

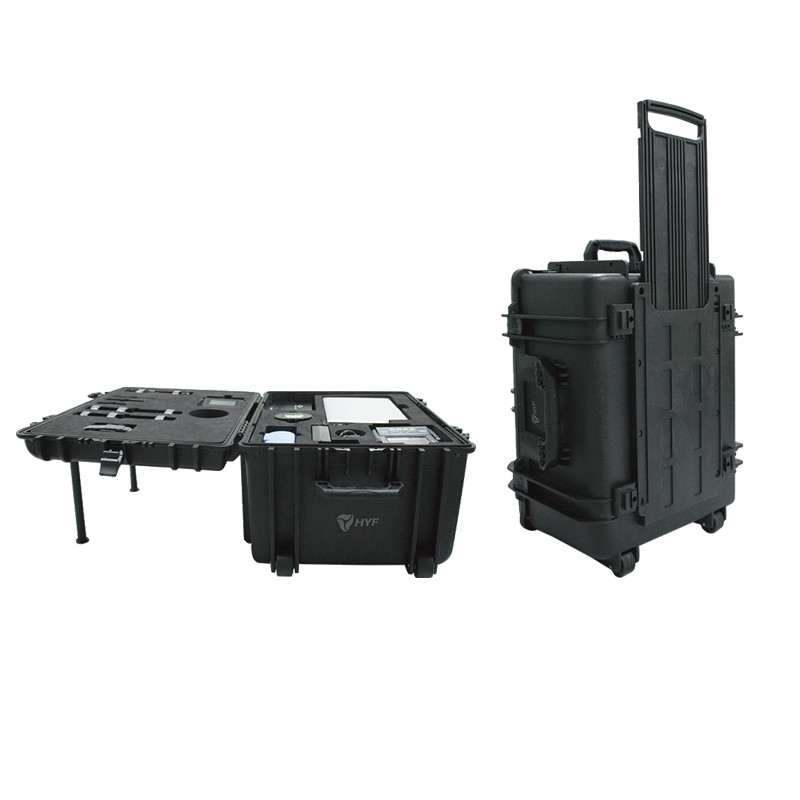

| Type | detail | describe | | Casing | external dimension | Case Size:607*508*355mm | | weight | 32kg | | NoteBook | screen size | 13.3" 1920*1080 IPS | | specification | 13.3寸 314.3x216x14.8mm I5 WIN10 pro, 8G+256G ,1920*1080 IPS
,CAM:1.0MP,5000mah, Dual band WIFI+BT+Keyboard, DC 12V/3A*1, I/O
Port: 1x miniSD,USB3.0*2,Type-C*1,HP:3.5mm*1,Micro HDMI*1 | | battery | 5000mah | | the duration of flight | 4-6H Above(Working Status) | | System hardware configuration | | type | function | describe | | Digital Camera | support | C920E/5V/USB2.0,With MIC,AF, 2.0MP,3MP,6MP,15MP, 162g,Black,
Size:70*47*94mm | | Camera fill light | LED Backlight,Diameter 160mm,Black,Power 5W, USB interface,360
degree rotation,
height adjustable320-500mm | | Miniature tripod | Tripod ,size Height=120mm ,43g,Black,360 degrees rotation | | 442 Fingeprint Scanner | support | Suprema G10 4-4-2, 5V USB port, 20 Frame/S, Sensor area: 89 x 80
mm, comply with FBI IAFIS Appendix F
Built in speaker, workin with Windows/Linux , Weight: 1.8kg, IP54
class protection | | File Scanner | support | S1000P 5V/USB2.0,10MP(3648*2736)with AF and LED light ,30Fps(VGA)
Support Windows xp/Vista/WIN7/WIN8/WIN10 Size:264*90*95mm | | BT Thermal Printer | support | SP-L31 80mm Thermal Printer, 8 dot/mm, Support Chinese/English
character/1D Barcode/2D Barcode
1400mah/7.4V , Power supply 8.4V/800ma Size:105*109*51mm Weight:
360g Print Life: 50km | | Solar panel | support | Foldable, 80W, DC Load Voltage:12V,DC Load Currency:6A,USB Load
Voltage:4.75-5.25V,USB Load Current2.4A,Output
Voltage:19-24V,Spreaded size:1355*430*30mm,Folded
size:430*295*50mm,Weight;2.192kg,Working Tempreture:-30- +75 ℃
,Solar Charging Lux:4000LUX-120000LUX | | Signature Board | support | ESP 370U,5V USB Data and Charging, 3.7“,Singature Area:76.78 x
39.58mm Out size:154.5 × 120 ×9 mm ,Weight:157g,Accuracy Range
0.2mm Resolution:0.01mm/dot,Response Time 16ms
Comply with Win XP,XPE, Vista or Win7 | Built-in power
supply | support | 7-9H above(working status)7.4V/30000mAH
battery,size:170.5*73.4*58mm
Cable length: 200mm 15A protection Board | | network connections | | type | function | describe | | WIFI | support | support WiFi 802.11b/g/n/ac 2.4G/5G | | BT | support | Bluetooth4.2 | | connector | | type | detail | describe | | configuration | connector | 1x miniSD ,Support USB3.0*2,Type-C*1,3.5mm Earphone Jack*1,Micro
HDMI*1,12VDC*1,HUB USB*4 | | standard fittings | | type | detail | describe | | power adapter | standard configuration | Power Adapter,220V Input Power Cord,24V/6A DC output | | software configuration | | type | detail | describe | | operating system | WIN10 | WIN 10 Pro OS |
|
